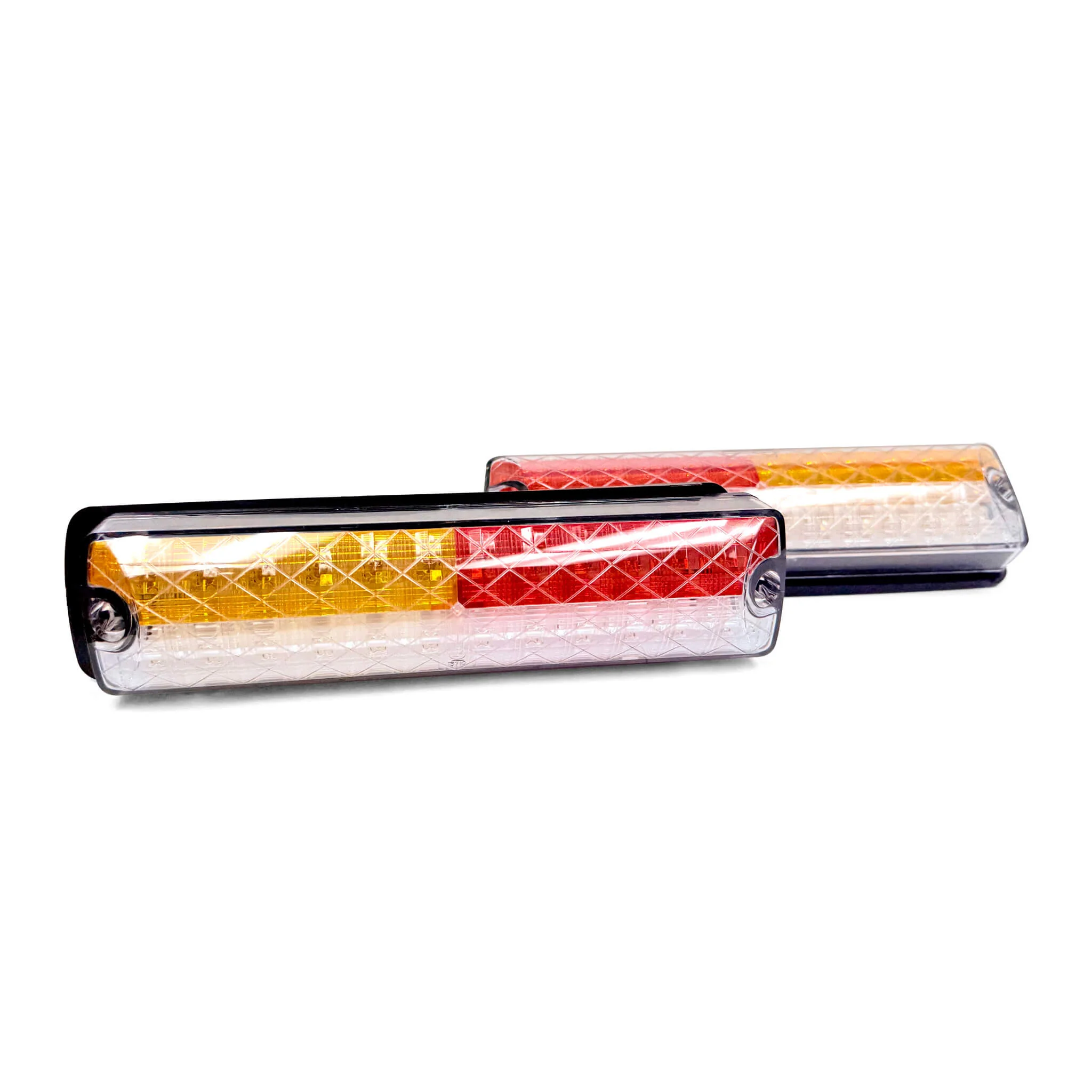

Combo Lights - Stop / Turn / Reverse combination LED

Our LED rear combination lamps are a sleek and versatile solution designed for rear bumpers. These lamps combine stop, tail light, turn signal and reverse functions in one compact unit, offering exceptional durability with maintenance-free LED technology. They provide superior visibility, enhancing safety on the road. With more light output than traditional incandescent lamps and drawing only a fraction of the power, these lamps are built to last. Featuring robust polycarbonate lenses and housings, they are dustproof, waterproof, and designed to run for up to 100,000 hours—maintenance-free.

• Slim LED combination lamp
• Supports 10-30V DC input & low current draw
• Waterproof 5-pin connectors
• Brighter than conventional bulbs
• 100,000 hour LED life span with solid-state technology
• Maintenance-free
• Sealed polycarbonate lens & housing
• Integrated reverse function

• Simple surface mount design
• 46" of wire per light, sufficient to reach most tail lights

• Works well with our: Tinted Combo Light Lens Cover

Wiring Guide
Ground - White
Stop - Red
Tail/Running- Brown
Indicator - Green or Yellow
Reverse - Black

Installation

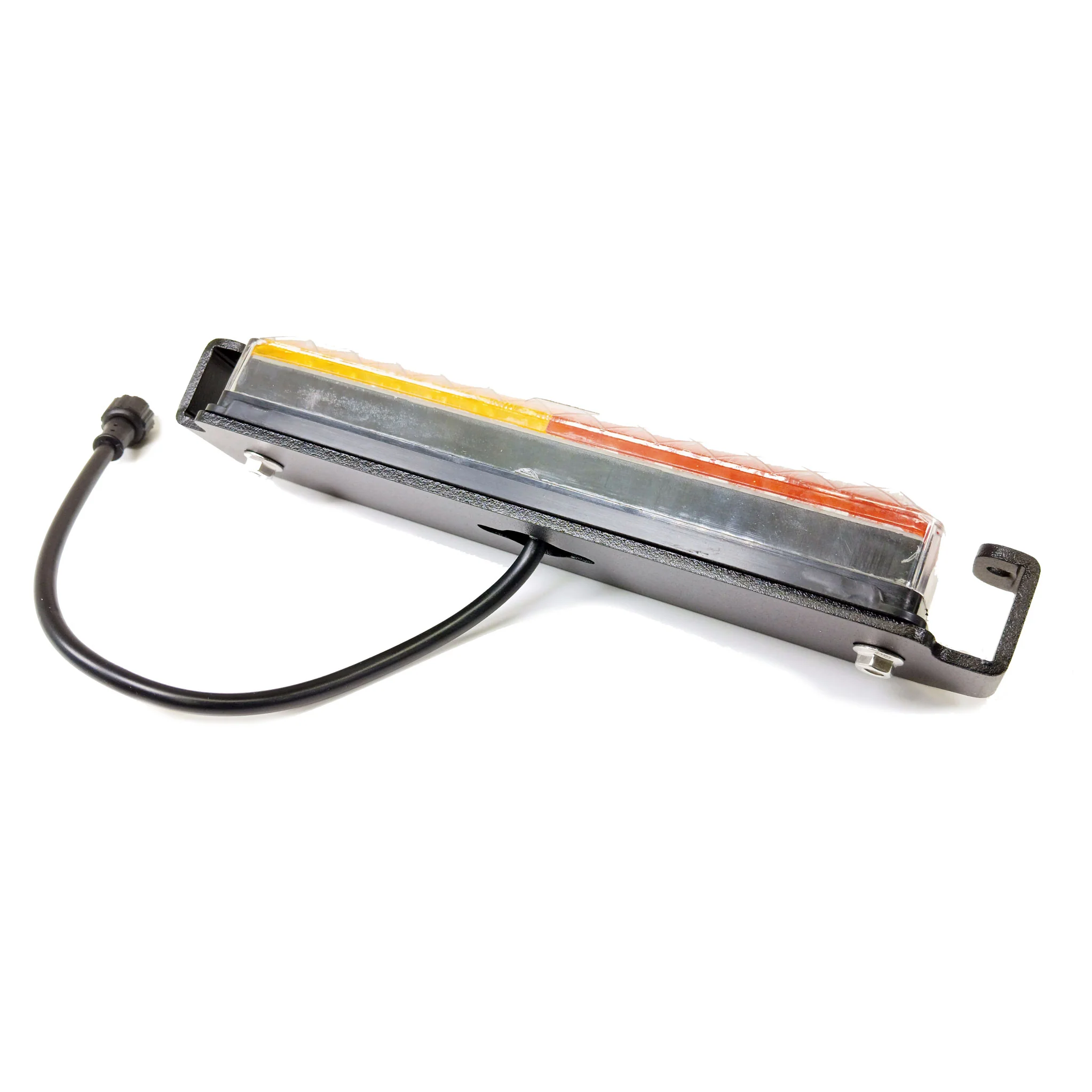

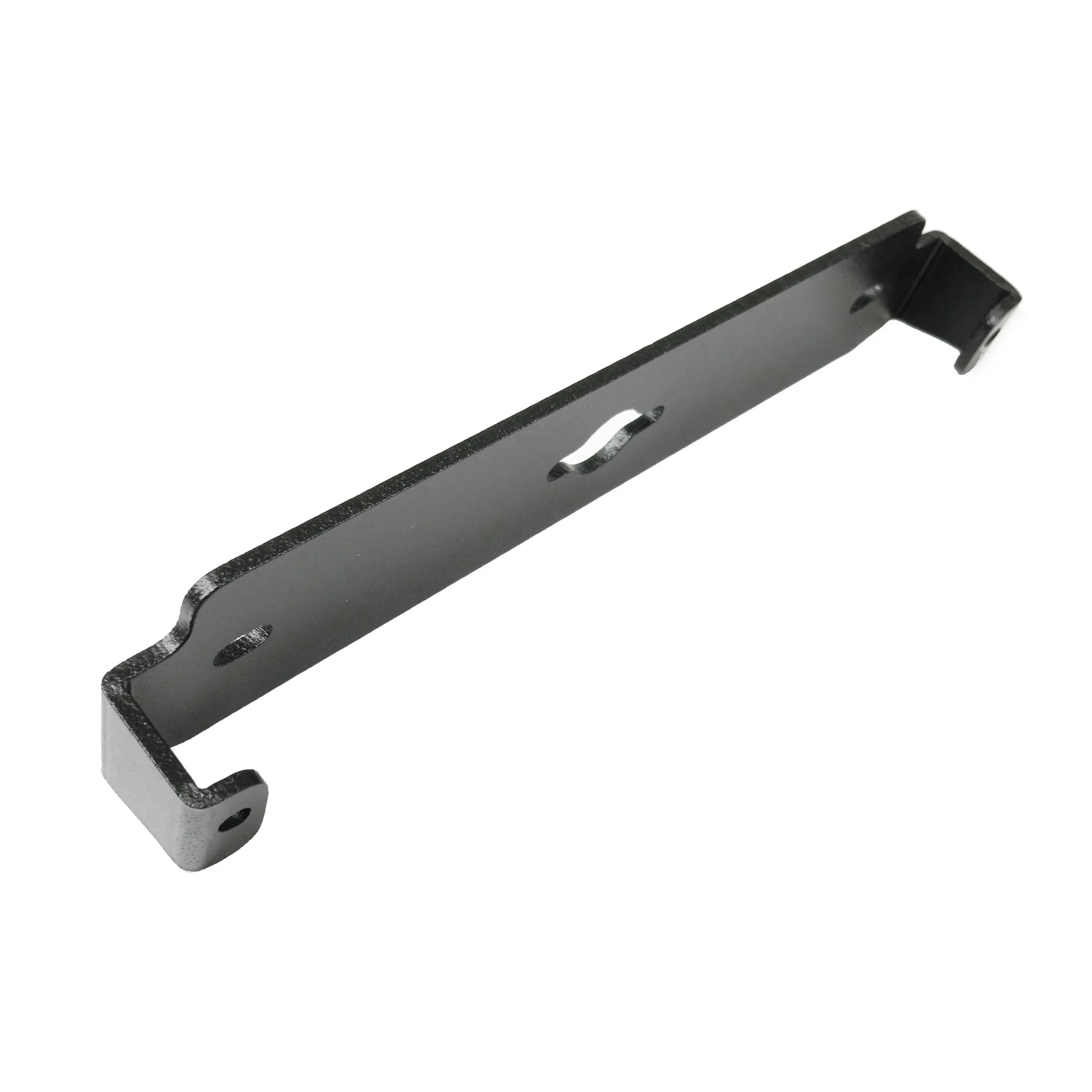

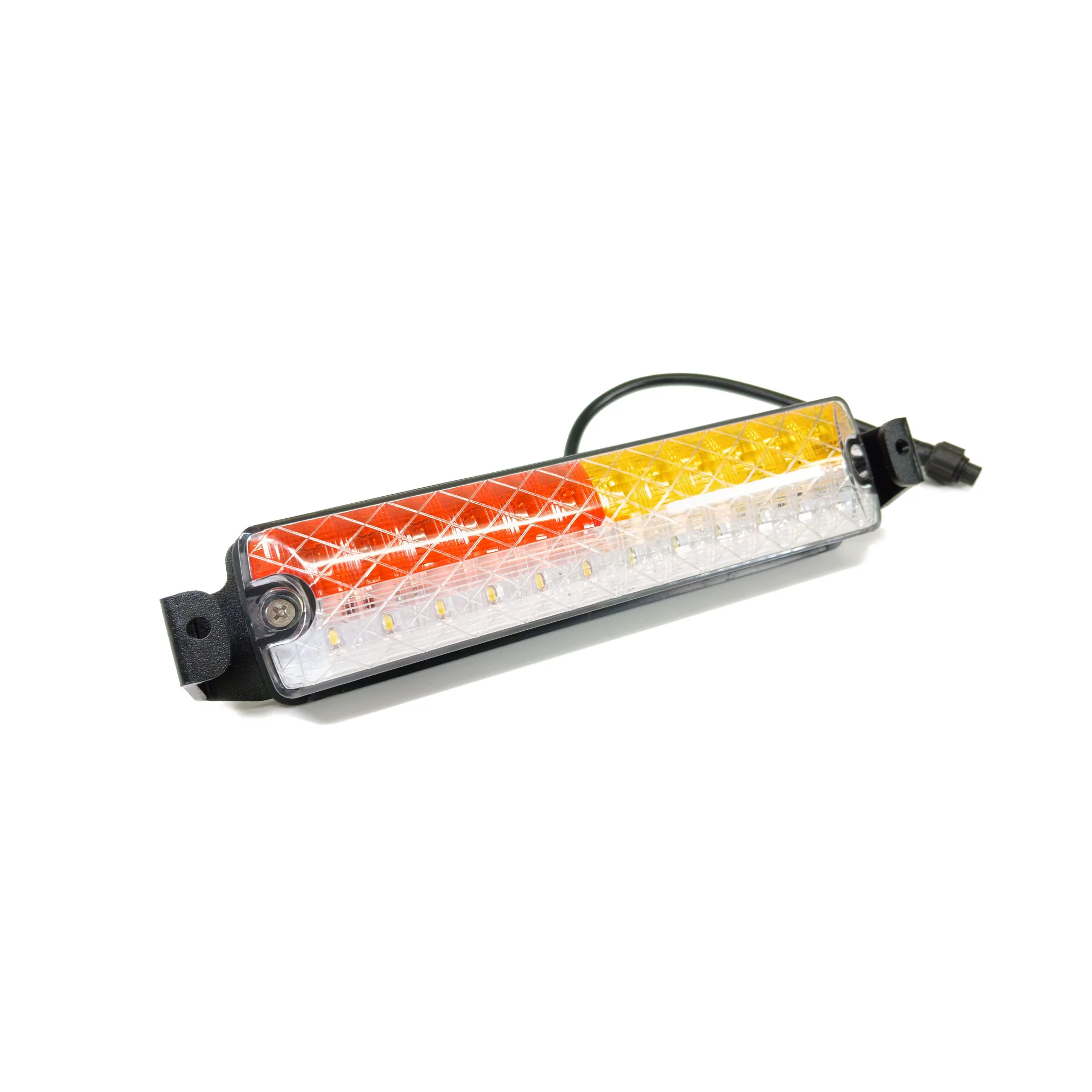

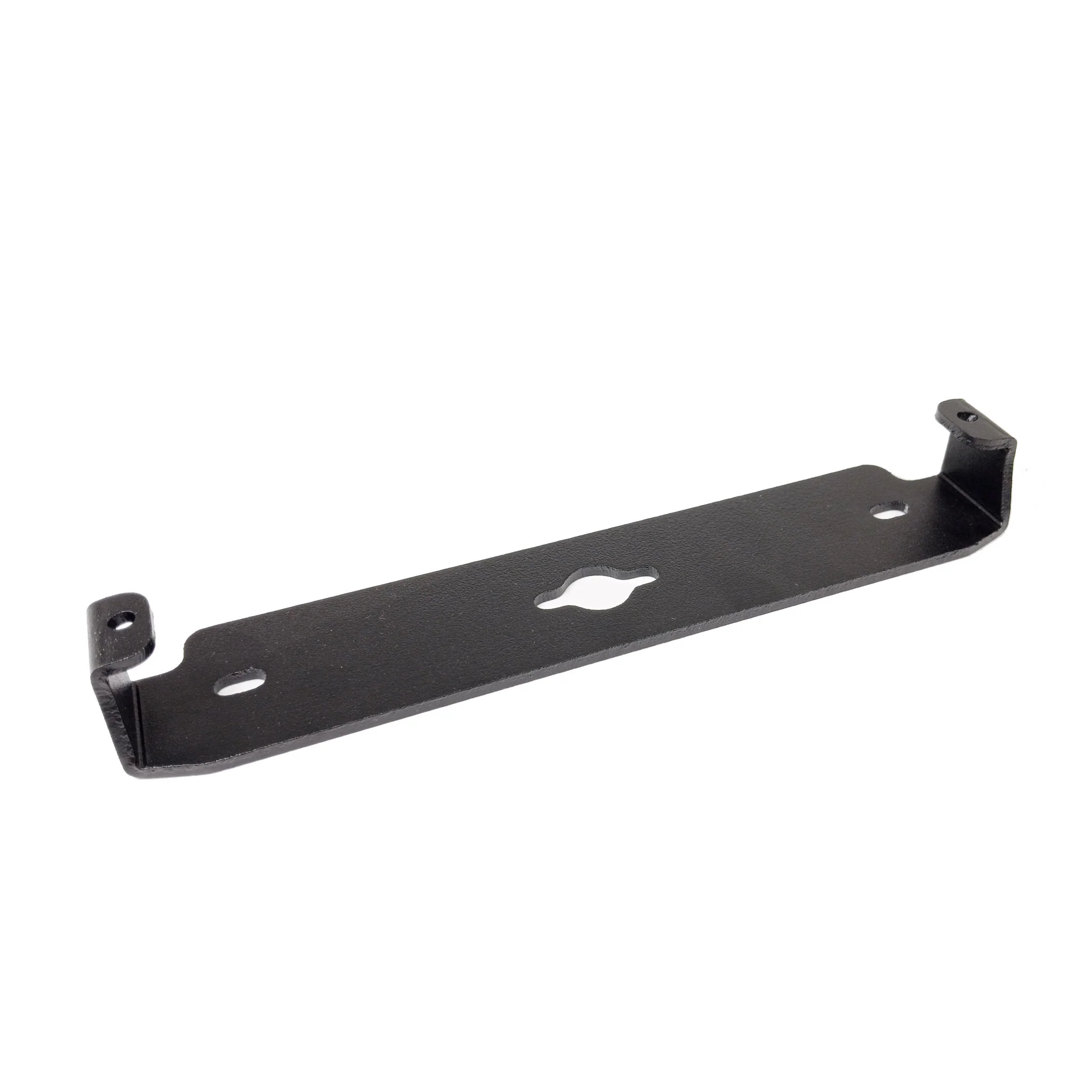

Mount these lights to the provided brackets with the smaller "notched" side pointing upwards. Install this assembly into the opening in the bumper using the pre-threaded "1/4-20" holes to fasten into place.

 *(LC80 Rear Bumper does not use these brackets, and mounts directly inside bumper.)

**(LC250, Due to the LC250’s digital turn signal system, a 2-to-3 wire converter is required for proper operation. These lights will not provide turn signal function without it. )
