ComeUp Slim 9.5rs Trail Edition Winch
COMEUP Slim 9.5rs Trail Edition Winch – 9,500 lb, 12V, Synthetic Rope
The COMEUP Slim 9.5rs Trail Edition is a compact, low-profile winch engineered for overland expedition and trail recovery where space is limited but performance cannot be compromised. Delivering a dependable 9,500 lb rated line pull, the Slim 9.5rs combines modern winch technology with a reduced-height design for tight bumper and winch tray applications.
This winch integrates as a direct plug-and-play solution for select Dissent Off-Road front winch bumpers, including applications for the GX550, LC250, 4Runner, and other compatible platforms requiring a compact winch footprint.
Trail Edition upgrades include the innovative BossHook-M and a dedicated winch fuse kit, providing enhanced safety, protection, and long-term reliability for demanding off-road environments.
Key Features
- 9,500 lb (4,309 kg) rated single-line pull
- 5.0 HP / 3,730W 12V series-wound motor
- Slim, low-profile design for tight bumper and winch tray applications
- Synthetic rope for reduced weight and safer recovery
- Wireless digital remote plus waterproof wired remote with thermometric LED indicator
- Automatic CBS (Cone Brake Structure) braking system (outside the drum)
- BossHook-M closed-system recovery hook
Specifications
| Rated Line Pull | 9,500 lb (4,309 kg) single line |
|---|---|
| Motor | 5.0 hp / 3,730 W, 12V series wound |
| Gear Train | 3-stage planetary |
| Gear Ratio | 159:1 |
| Clutch (Free Spool) | Rotating ring gear |
| Brake (Outside the Drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch Construction | Aluminum die-cast housing with steel drum |

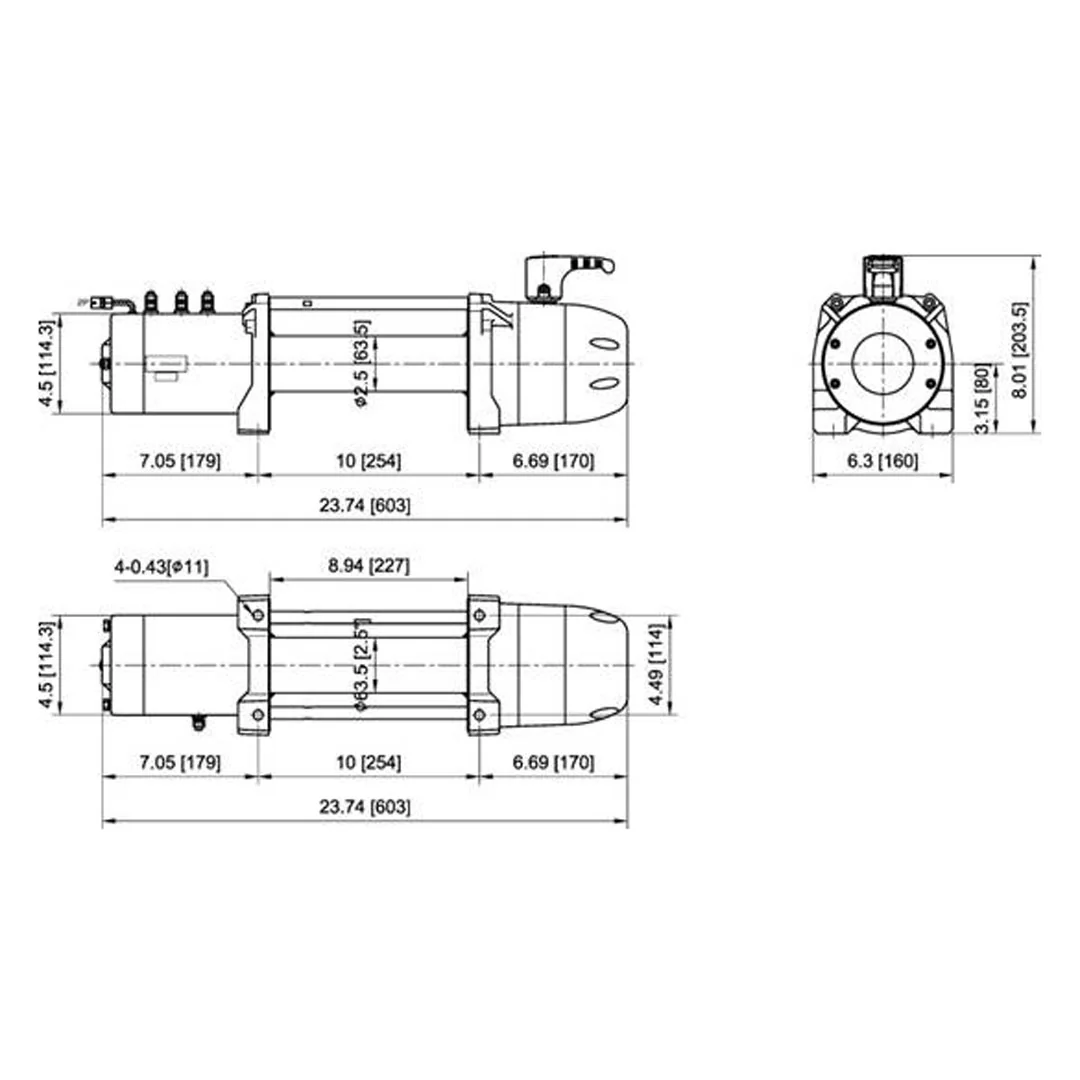

| Drum Size | 2.5" × 8.9" (63.5 × 227 mm) |
| Control | Built-in digital two-way wireless remote + waterproof wired remote (17 ft / 5 m) with thermometric LED indicator |
| Rope Type | Synthetic rope |
| Rope Size | 3/8" × 76 ft (10 mm × 23.2 m) |
| Warranty | Limited lifetime mechanical warranty; 3-year electrical warranty |
| Box Dimensions | 26.9" × 8.2" × 16.9" (682 × 209 × 430 mm) |
Line Speed & Amp Draw (1st layer of rope on drum)
| Line Pull | Line Speed | Amp Draw (A) |
|---|---|---|
| No Load | 14.8 mpm / 48.6 fpm | 60 |
| 907 kg / 2,000 lb | 4.8 mpm / 15.7 fpm | 115 |
| 1,814 kg / 4,000 lb | 3.6 mpm / 11.8 fpm | 210 |
| 2,722 kg / 6,000 lb | 2.8 mpm / 9.2 fpm | 245 |
| 3,629 kg / 8,000 lb | 2.3 mpm / 7.6 fpm | 280 |
| 4,309 kg / 9,500 lb | 2.2 mpm / 7.2 fpm | 380 |
Line Pull & Rope Capacity
| Rope Layer | Pull by Layer | Total Rope on Drum |
|---|---|---|
| 1st | 4,309 kg / 9,500 lb | 5.1 m / 16.7 ft |
| 2nd | 3,472 kg / 7,655 lb | 11.7 m / 38.4 ft |
| 3rd | 2,908 kg / 6,410 lb | 19.7 m / 64.6 ft |
| 4th | 2,501 kg / 5,514 lb | 23.2 m / 76.0 ft |
Original: $1,495.95
-65%$1,495.95
$523.58
